Shuttle Barebone X50V4: The all-in-one fanless available

Shuttle Barebone X50V4 is an all-in-one absolutely fanless Intel Celeron 2975U. Shuttle announces the start of the distribution volumes in the new All-in-One PC Barebone X50V4, characterized by the complete absence of fans for ” the lowest noise with lower maintenance requirements. ”

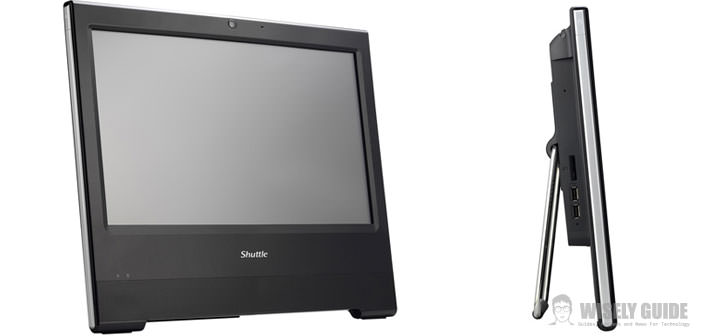

At the base of the system, we find an Intel Celeron particularly frugal, and a touch display 15.6″ resolution 1,366 x 768 pixel at the request of the market B2B (business-to-business).

Unlike previous models based on Atom, the new X50V4 uses an Intel Celeron 2957U has two core 1.4GHz of 15W. This feature allows significantly higher performance, while maintaining low power consumption and allowing the fanless design. With a depth of 42 mm, the chassis allows the installation of a disk 2.5″ (both SSD and mechanical), and an mSATA module.

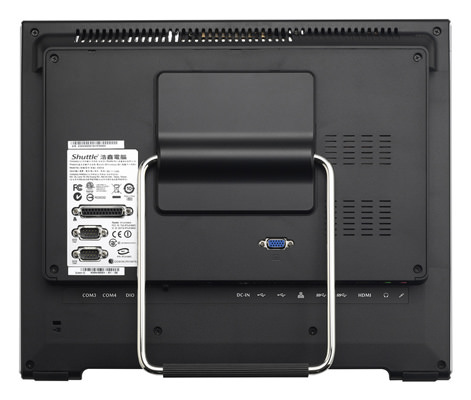

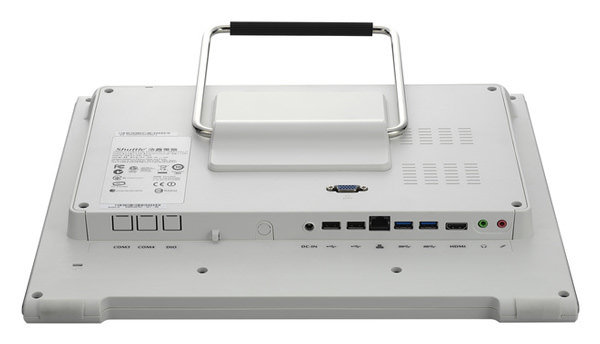

For the first time in the family, you can install the system up to a maximum of 8 GB of RAM on DDR3L SO-DIMMs. In the bottom of the case, there are several connectors identified as ” indispensable ” to the present, including four USB ports, two of which 3.0, Gigabit Ethernet, one VGA, one HDMI, in addition to the canons headphone jack and microphone.

Integrated in the frames of the display, there are also a 2-megapixel webcam and stereo speakers. Completing the list of the technical support to network connections Wi-Fi, the presence of a card-reader and a stand, which can be transformed into a handle for convenient transport. Shuttle Barebone X50V4 can also be connected to the wall through a conventional VESA.

If required, you can install up to four serial interfaces (1xLPT, 1xDIO / RJ11). Expected, moreover, resistance to intrusion of dust and water splashes thanks to IP54 certification.
