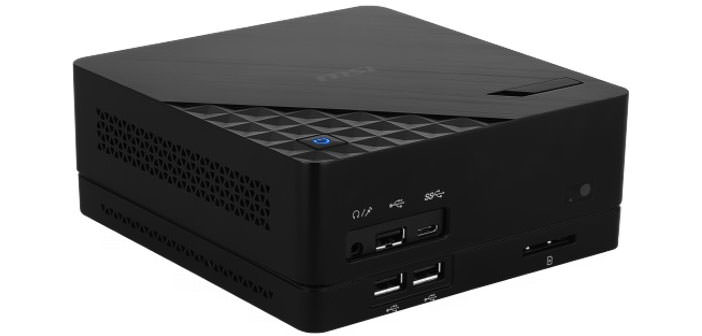

MSI announces new generation mini-PC of Cubi 2 Plus
The MSI Cubes 2 Plus is thought to be the meeting point between the business needs and consumer needs, all in small size.
MSI has just announced the new generation of cubes, which aims to further reduce the size without giving up the performance. For this Cubi 2 Plus is based on a new motherboard STX (5×5) which provides space savings of approximately 30% compared to the normal mini-ITX boards.
The Skylake-S CPU, also deliver more power from less fuel than before. In addition, the Cubes family systems allow upgrading the CPU at your own risk, so as to give new life to the Cubi 2 Plus even after some time of purchase.
MSI Cubi 2 Plus is then installed either wall or in the back of the modern monitors due to attacks with VESA standard. It is equipped with various video outputs that allow you to connect to two monitors. Thought optic business, Cubi 2 Plus boasts a number of USB ports and a COM port.
In addition to the normal Cubi 2 Plus will also be available also a version called vPro, with support for Intel vPro technology and Intel Unite. Intel Unite allows you to easily create meetings anywhere in the world, simultaneously managing up to 4 screens in sharing.
MSI Cubi 2 Plus – Specifications
| MSI Cubi 2 Plus | MSI Cubi 2 Plus vPro | |
| Processor | Intel Core i3-6100T Intel Core i5-6500T Intel Core i7-6700T |
Intel Core i3-6100T Intel Core i5-6500T Intel Core i7-6700T |
| Operating System | Windows 10 Home (64-bit) | Windows 10 Home (64-bit) |
| Chipset | Intel H110 | Intel Q170 |
| Graphics | Intel HD Graphics 530 | Intel HD Graphics 530 |
| Storage | DDR4 2133MHz 2 slots (up to 32GB) |
DDR4 2133MHz 2 slots (up to 32GB) |
| HDD | 1x M.2 SATA SSDs up to 256GB 1x 2.5″ 7200 rpm SATA HDD or SSD up to 1TB |
1x M.2 SATA SSDs or PCIe SSD, up to 256GB 1x 2.5″ 7200 rpm SATA HDD or SSD up to 1TB |
| Wireless | 802.11ac + BT4.0 802.11b / g / n |
802.11ac + BT4.0 802.11b / g / n |
| Prots | Top: 1x USB 2.0 (with super charger) Front: 1x Mic/Audio Jack, 3x USB 2.0, 1x USB 3.1 Gen 1 type-C, 1x Card Reader Rear: 1x RJ45 LAN port, 1x HDMI out, 1x DisplayPort out, 2x USB 3.1 Gen 1 |
Top: 1x USB 2.0 (with super charger) Front: 1x Mic/Audio Jack, 2x USB 2.0, 1x USB 3.1 Gen 1 type-C, 1x USB 3.1 Gen 1, 1x Card Reader Rear: 1x RJ45 LAN port, 2x HDMI out, 1x DisplayPort out, 2x USB 3.1 Gen 1, 1x USB2.0, 1x COM port |
| Power Supply | 90W | 90W |
| Dimensions | 155.3 mm * 147.9 mm * 58.6 mm | 155.3 mm * 147.9 mm * 58.6 mm |
